720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems

Certification : E-Mark, CE, FCC, RoHS

Proposal 1 : IMX225 + NVP2431 with 1280*720 Pixel

Proposal 2 : GC2053 + TP3820/3811 with 1920*1080 Pixel

Proposal 3 : SC2331 + TP3810 with 1920*1080 Pixel

Applications : Rear View Camera Display System(RVC), 360° Around View Monitor System(AVM), Moving Object Detection(MOD), ADAS Camera etc.

Brand Name : Customized

MOQ : 300

Price : Negotiatable

Packaging Details : Regular Export Packaging, Customized

Delivery Time : 30~60 days

Payment Terms : T/T, L/C

Supply Ability : 100000/Month

Application : Automotive

Contact Now

FEATURES



  • 1.3 million pixel camera;

  • AHD signal transmission;

  • IP69K Level Protection;

  • AA focus technology;

  • Applies to ADAS: RVC, MOD, PD, LDWS, DVR, DMS etc.








AHD CAMERA's SPECIFICATIONS



Image Sensor

CMOS

Resolution

1280(H) x 720(V)

Field of View (FOV)

187±5°

FNO

2.5

Frame Rate

30 fps

Minimum Illumination

0.1lux

Dynamic Range

≥80dB

Automatic White Balance (AWB)

Yes

Automatic Gain Control (AGC)

Yes

Automatic Exposure Control (AEC)

Yes

Signal Output

AHD

Image Output

Mirrored/Non-mirrored

Operating Temperature

-40℃~85℃

Storage Temperature

-40℃~95℃

Operating Humidity

≤95%RH

Working Voltage

5VDC

Working Current

150mA@5VDC

Lens Ingress Protection

IP69K







SIZE OF CAMERA

720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems






IMAGE DISPLAY



  • Higher image resolution(1280P*720P)

  • Better image reducibility

  • Clear night vision

720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems




APPLICATIONS

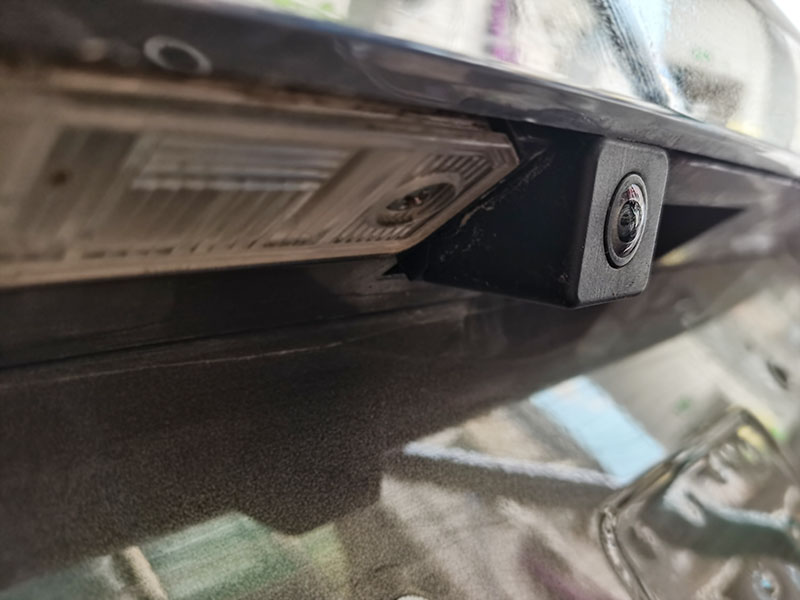

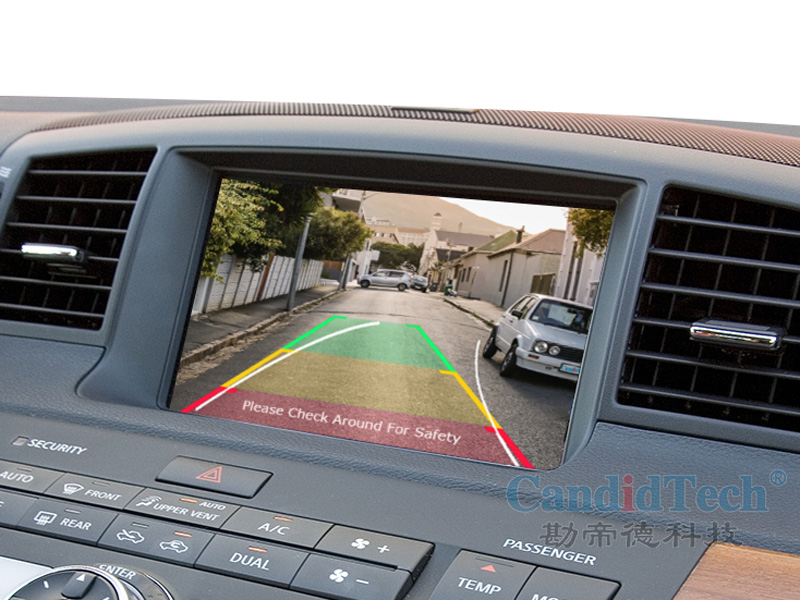

Rear View Camera Display System(RVC)



The automotive rearview camera system is a safety feature designed to enhance visibility and prevent accidents while reversing a vehicle. Typically mounted on the rear of the car, this camera provides a live video feed to the driver through a display screen, usually integrated into the vehicle's dashboard.



With advancements in technology, many rearview camera systems now come with additional features such as warning alerts for nearby objects and integration with parking sensors, making them an essential component of modern vehicles aimed at improving overall road safety. Candid's AHD Camera optical lens has pass IP69K experiment, strictly meet the automotive regulations.



720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems

720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems

720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems

Position 60mm

to the left of rear center
Installation Height 1045mm to the level ground
Installation  Angle 34°
Vertical Blind Spot Distance 264mm
Angle of Elevation     14°




Remarks

1. Above installation status are for reference only, the actual installation will be based on practical car data.

2. The installation for camera must comply with local law and regulations.





Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, Microwave Radar Blind Spot Detection Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please emailsales2@candidelectronics.com for more details.



720P AHD Camera With IP69K Protection And CMOS Image Sensor For Driver Assistance Systems
